Xtreme Clutch Kit For Toyota MR2 SW20 3

SKU
KTY18520
In stock

All orders over £150 are eligible for 0% Finance

Fits:
Toyota MR2 SW20 3SGTE

Stage 1 - Heavy Duty Organic Clutch
CATEGORY
Heavy Duty Organic Clutch Kit
Primarily designed for high performance road-going vehicle, Xtreme Clutch Stage 1 clutch kits deliver substantial increases in perfomance and power holding capabilites whilst retaining ease of drivability. These kits include an organic friction disc with rigid or sprung options available.

Item Details:
  • Product Code: KTY24006-1A
  • Type: Heavy Duty Organic Clutch Kit
  • Disc Diameter (mm): 236
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 418
  • Torque(ft lb): 308.3
  • Clamp Load: 820Kg (30% inc.)

Stage 2 - Heavy Duty Sprung Ceramic Clutch
CATEGORY
Xtreme Outback - Heavy Duty Sprung Ceramic Clutch Kit
Xtreme Clutch utilises the latest ceramic technology in their Stage 2 perfomance kits. The kits are available in either a cushioned (DCB) or a sprung (DSB) style button friction disc. Mated to a high performance pressure plate, the Stage 2 clutch is good for road and track vehicles requiring a higher level of power holding capability.

Item Details:
  • Product Code: KTY24006-1B
  • Type: Xtreme Outback - Heavy Duty Sprung Ceramic Clutch Kit
  • Disc Diameter (mm): 236
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 632
  • Torque(ft lb): 466.14
  • Clamp Load: 820Kg (30% inc.)

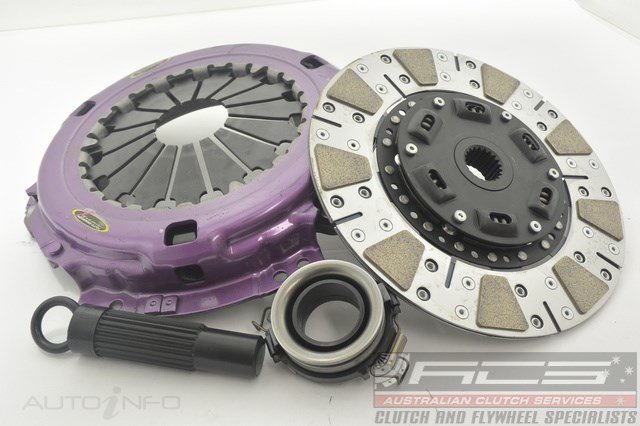

Stage 2 - Heavy Duty Cushioned Ceramic Clutch
CATEGORY
Xtreme Outback - Heavy Duty Cushioned Ceramic Clutch Kit
Xtreme Clutch utilises the latest ceramic technology in their Stage 2 perfomance kits. The kits are available in either a cushioned (DCB) or a sprung (DSB) style button friction disc. Mated to a high performance pressure plate, the Stage 2 clutch is good for road and track vehicles requiring a higher level of power holding capability.

Item Details:
  • Product Code: KTY24006-1C
  • Type: Xtreme Outback - Heavy Duty Cushioned Ceramic Clutch Kit
  • Disc Diameter (mm): 236
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 632
  • Torque(ft lb): 466.14
  • Clamp Load: 820Kg (30% inc.)

Stage 2R - Race Sprung Ceramic Clutch
CATEGORY
Race Sprung Ceramic Clutch Kit
The ceramic race series is a single plate race-only clutch. Available for a wide variety of vehicles, the Stage 2R series clutch provides a higher torque capacity and heat capacity over the stage 2 equivalents.

Item Details:
  • Product Code: KTY24006-1R
  • Type: Race Sprung Ceramic Clutch Kit
  • Disc Diameter (mm): 236
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 760
  • Torque(ft lb): 560.55
  • Clamp Load: 1050Kg (45% inc.)

Stage 3 - Race Carbon Blade Clutch
CATEGORY
Race Carbon Blade Clutch Kit
Used by some of the most powerful time attack and drift cars in the world, the Xtreme Clutch single plate carbon clutch kits provide exceptional heat capacity for high horsepower vehicles.

Item Details:
  • Product Code: KTY24006-1P
  • Type: Race Carbon Blade Clutch Kit
  • Disc Diameter (mm): 236
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 691
  • Torque(ft lb): 509.66

Track Use - Sprung Ceramic Twin Plate Clutch I
CATEGORY
184mm Spring Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KTY18520-2B
  • Type: 184mm Spring Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 184
  • Spline Diameter (mm): 29.8
  • Spline Count: 21
  • Torque (Nm): 1210
  • Torque(ft lb): 892.45

Note - Complete Kit incl. C/moly F/W & P/P Bolts

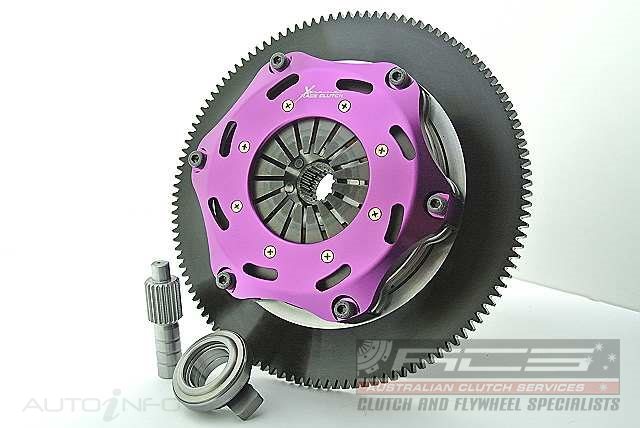

Track Use - Rigid Ceramic Twin Plate Clutch
CATEGORY
184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KTY18520-2E
  • Type: 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 184
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 1210
  • Torque(ft lb): 892.45

Note - Complete Kit incl. C/moly F/W & P/P Bolts

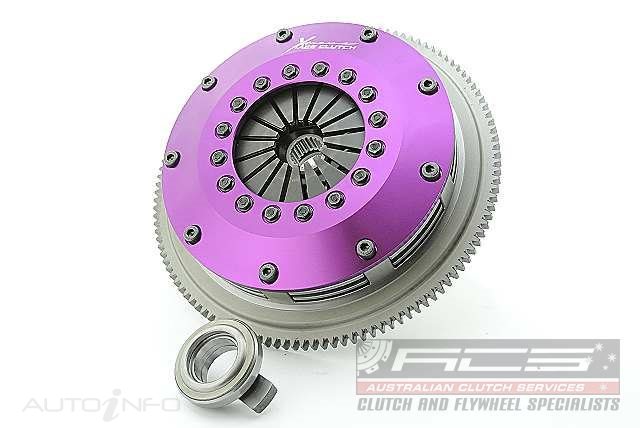

Track Use - Sprung Ceramic Twin Plate Clutch II
CATEGORY
200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KTY20520-2B
  • Type: 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 200
  • Spline Diameter (mm): 29.8
  • Spline Count: 21
  • Torque (Nm): 1200
  • Torque(ft lb): 885.07

Note - Complete Kit incl. C/moly F/W & P/P Bolts

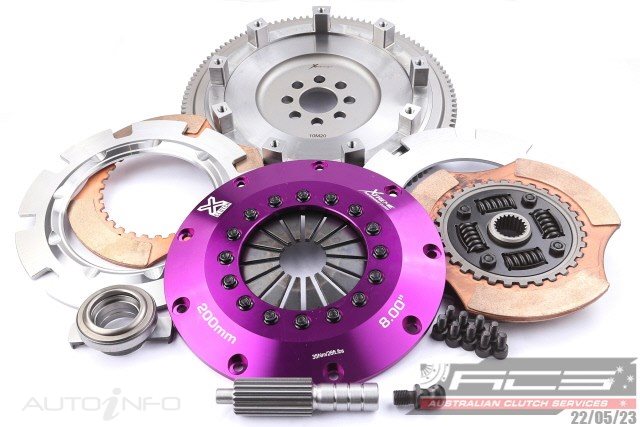

Track Use - Rigid Ceramic Twin Plate Clutch
CATEGORY
200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KTY20520-2E
  • Type: 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 200
  • Spline Diameter (mm): 29
  • Spline Count: 21
  • Torque (Nm): 1200
  • Torque(ft lb): 885.07
  • Clamp Load: 1100Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts

More Information
Manufacturer Xtreme Clutches
