Xtreme Clutch Kit For Mazda MX5 NC 6 Speed

SKU
KMZ20524
In stock

All orders over £150 are eligible for 0% Finance

Fits:
Mazda MX5 NC, NCEC (6-Speed) LFDE 2.0L

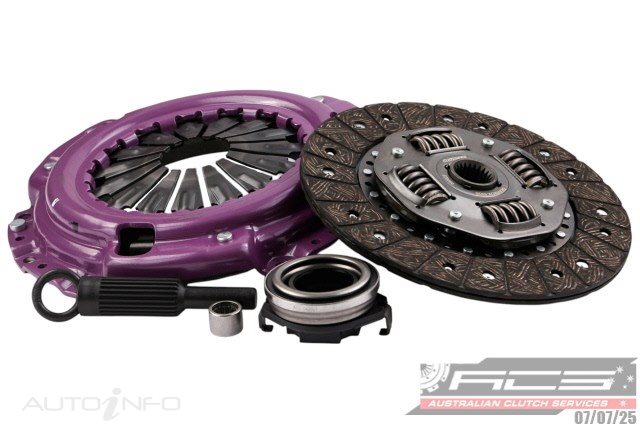

Stage 1 - Heavy Duty Organic Clutch
CATEGORY
Heavy Duty Organic Clutch Kit
Primarily designed for high performance road-going vehicle, Xtreme Clutch Stage 1 clutch kits deliver substantial increases in perfomance and power holding capabilites whilst retaining ease of drivability. These kits include an organic friction disc with rigid or sprung options available.

Item Details:
  • Product Code: KMZ23017-1A
  • Type: Heavy Duty Organic Clutch Kit
  • Disc Diameter (mm): 225
  • Spline Diameter (mm): 26.2
  • Spline Count: 23
  • Torque (Nm): 400
  • Torque(ft lb): 295.02
  • Clamp Load: 900Kg

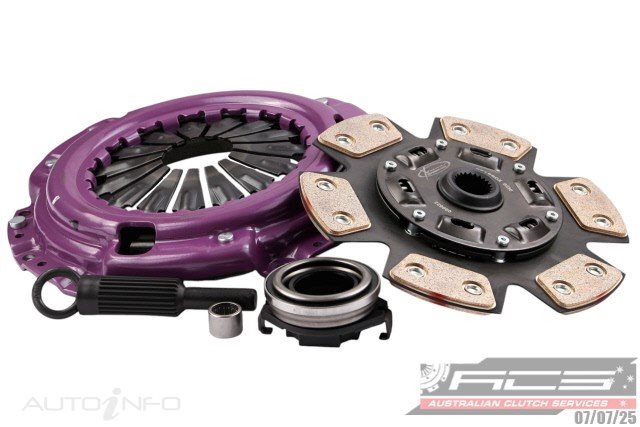

Stage 2 - Heavy Duty Sprung Ceramic Clutch
CATEGORY
Heavy Duty Sprung Ceramic Clutch Kit
Xtreme Clutch utilises the latest ceramic technology in their Stage 2 perfomance kits. The kits are available in either a cushioned (DCB) or a sprung (DSB) style button friction disc. Mated to a high performance pressure plate, the Stage 2 clutch is good for road and track vehicles requiring a higher level of power holding capability.

Item Details:
  • Product Code: KMZ23017-1B
  • Type: Heavy Duty Sprung Ceramic Clutch Kit
  • Disc Diameter (mm): 225
  • Spline Diameter (mm): 26.2
  • Spline Count: 23
  • Torque (Nm): 603
  • Torque(ft lb): 444.75
  • Clamp Load: 900Kg

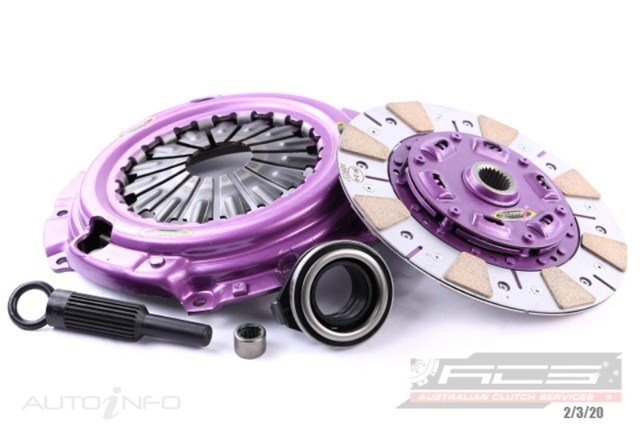

Stage 2 - Heavy Duty Cushioned Ceramic Clutch
CATEGORY
Heavy Duty Cushioned Ceramic Clutch Kit
Xtreme Clutch utilises the latest ceramic technology in their Stage 2 perfomance kits. The kits are available in either a cushioned (DCB) or a sprung (DSB) style button friction disc. Mated to a high performance pressure plate, the Stage 2 clutch is good for road and track vehicles requiring a higher level of power holding capability.

Item Details:
  • Product Code: KMZ23017-1C
  • Type: Heavy Duty Cushioned Ceramic Clutch Kit
  • Disc Diameter (mm): 225
  • Spline Diameter (mm): 26.2
  • Spline Count: 23
  • Torque (Nm): 603
  • Torque(ft lb): 444.75
  • Clamp Load: 900Kg

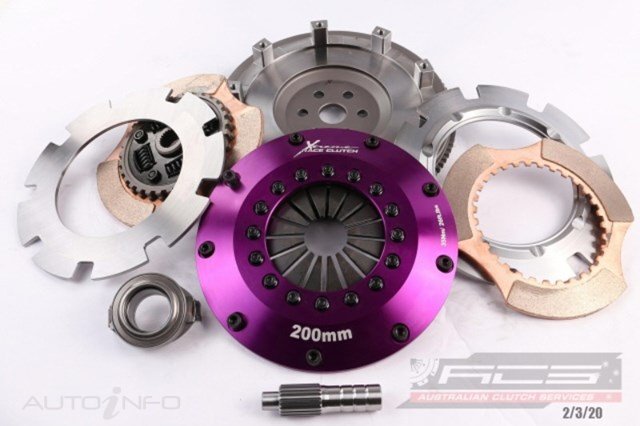

Track Use - Sprung Ceramic Twin Plate Clutch
CATEGORY
200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KMZ20524-2B
  • Type: 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 200
  • Spline Diameter (mm): 26
  • Spline Count: 23
  • Torque (Nm): 1200
  • Torque(ft lb): 885.07
  • Clamp Load: 1100Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts

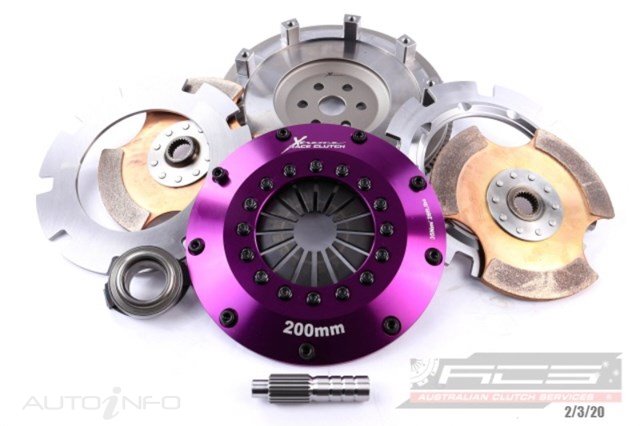

Track Use - Rigid Ceramic Twin Plate Clutch
CATEGORY
200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KMZ20524-2E
  • Type: 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 200
  • Spline Diameter (mm): 26
  • Spline Count: 23
  • Torque (Nm): 1200
  • Torque(ft lb): 885.07
  • Clamp Load: 1100Kg

More Information
Manufacturer Xtreme Clutches
