Xtreme Clutch Kit & CSC For Subaru Impreza WRX STI GDB GGB GRB GVB

SKU
KSU18521
In stock

All orders over £150 are eligible for 0% Finance

Fits:
Subaru Impreza WRX STI (6-Spd) GDB, GGB, GRB, GVB EJ20T / EJ25T

Notes:
Complete Kit incl. C/moly F/W & P/P Bolts (Pull-Type)

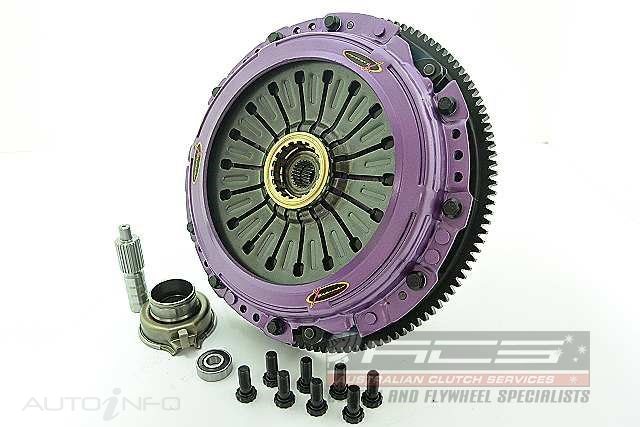

Steet Use - Organic Twin Plate Clutch I
CATEGORY
230mm Organic Twin Plate Clutch Kit Incl Flywheel
Xtreme Steet clutches are perfect replacements for OEM clutches, and offer increasing clamping pressure over standard. These clutches provide and near factory type driveability whilst increasing performance and power holding capability.

Item Details:
  • Product Code: KSU23531-2G
  • Type: 230mm Organic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 230
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1380
  • Torque(ft lb): 1017.84
  • Clamp Load: 1650 kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Pull-Type)

Steet Use - Organic Twin Plate Clutch II
CATEGORY
230mm Organic Twin Plate Clutch Kit Incl L/W Flywheel
Xtreme Steet clutches are perfect replacements for OEM clutches, and offer increasing clamping pressure over standard. These clutches provide and near factory type driveability whilst increasing performance and power holding capability.

Item Details:
  • Product Code: KSU23531-2GL
  • Type: 230mm Organic Twin Plate Clutch Kit Incl L/W Flywheel
  • Disc Diameter (mm): 230
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1380
  • Torque(ft lb): 1017.84
  • Clamp Load: 1650Kg

Note - Complete Kit incl. Lightweight C/moly F/W & P/P Bolts (Pull-Type)

Stage 1 - Heavy Duty Organic Clutch
CATEGORY
Heavy Duty Organic Clutch Kit
Primarily designed for high performance road-going vehicle, Xtreme Clutch Stage 1 clutch kits deliver substantial increases in perfomance and power holding capabilites whilst retaining ease of drivability. These kits include an organic friction disc with rigid or sprung options available.

Item Details:
  • Product Code: KSU24001-1A
  • Type: Heavy Duty Organic Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 572
  • Torque(ft lb): 421.89
  • Clamp Load: 1250kg (25% inc)

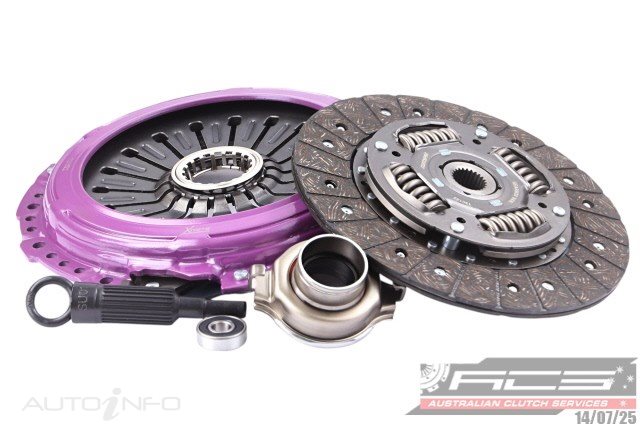

Stage 1 - Extra Heavy Duty Organic Clutch
CATEGORY
Extra Heavy Duty Organic Clutch Kit
Primarily designed for high performance road-going vehicle, Xtreme Clutch Stage 1 clutch kits deliver substantial increases in perfomance and power holding capabilites whilst retaining ease of drivability. These kits include an organic friction disc with rigid or sprung options available.

Item Details:
  • Product Code: KSU24001-1AX
  • Type: Extra Heavy Duty Organic Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 688
  • Torque(ft lb): 507.44
  • Clamp Load: 1500kg (50% inc)

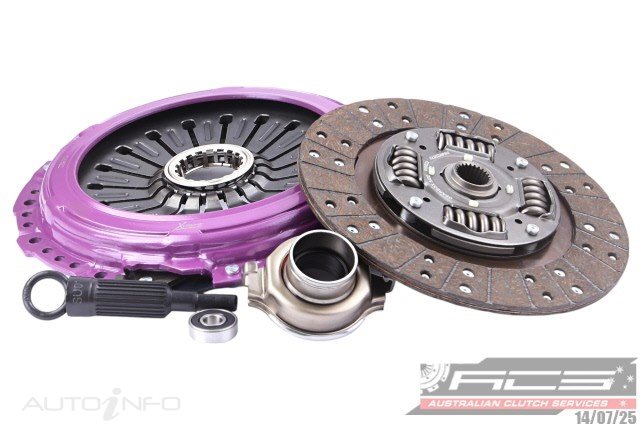

Stage 1 - Steel Backed Facing Clutch
CATEGORY
Steel Backed Facing Clutch Kit
Primarily designed for high performance road-going vehicle, Xtreme Clutch Stage 1 clutch kits deliver substantial increases in perfomance and power holding capabilites whilst retaining ease of drivability. These kits include an organic friction disc with rigid or sprung options available.

Item Details:
  • Product Code: KSU24001-1T
  • Type: Steel Backed Facing Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 572
  • Torque(ft lb): 421.89
  • Clamp Load: 1250Kg (30% inc.)

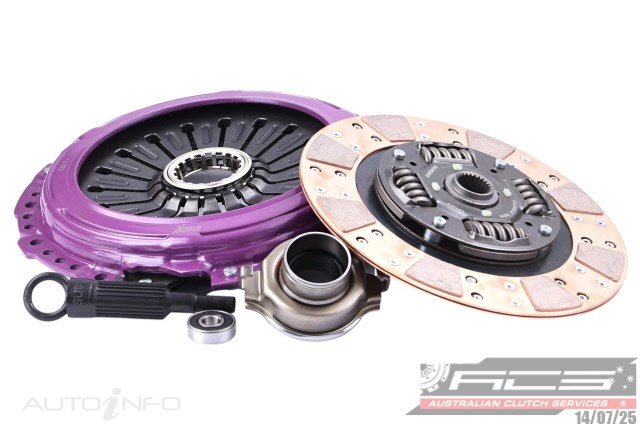

Stage 2 - Heavy Duty Cushioned Ceramic Clutch
CATEGORY
Heavy Duty Cushioned Ceramic Clutch Kit
Xtreme Clutch utilises the latest ceramic technology in their Stage 2 perfomance kits. The kits are available in either a cushioned (DCB) or a sprung (DSB) style button friction disc. Mated to a high performance pressure plate, the Stage 2 clutch is good for road and track vehicles requiring a higher level of power holding capability.

Item Details:
  • Product Code: KSU24001-1C
  • Type: Heavy Duty Cushioned Ceramic Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 865
  • Torque(ft lb): 637.99
  • Clamp Load: 1250kg (25% inc)

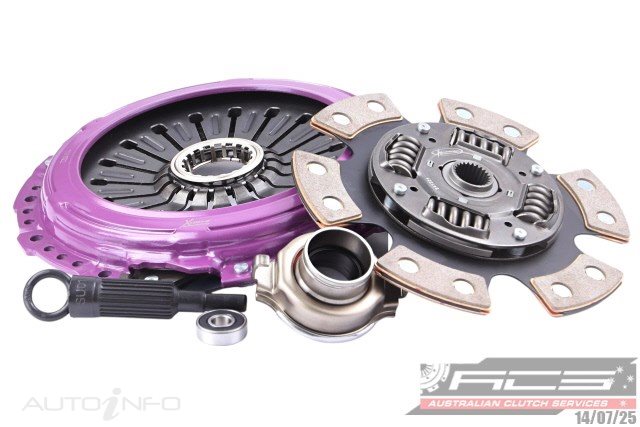

Stage 2 - Heavy Duty Sprung Ceramic Clutch
CATEGORY
Heavy Duty Sprung Ceramic Clutch Kit
Xtreme Clutch utilises the latest ceramic technology in their Stage 2 perfomance kits. The kits are available in either a cushioned (DCB) or a sprung (DSB) style button friction disc. Mated to a high performance pressure plate, the Stage 2 clutch is good for road and track vehicles requiring a higher level of power holding capability.

Item Details:
  • Product Code: KSU24001-1B
  • Type: Heavy Duty Sprung Ceramic Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 865
  • Torque(ft lb): 637.99
  • Clamp Load: 1250kg (25% inc)

Stage 2R - Race Sprung Ceramic Clutch
CATEGORY
Race Sprung Ceramic Clutch Kit
The ceramic race series is a single plate race-only clutch. Available for a wide variety of vehicles, the Stage 2R series clutch provides a higher torque capacity and heat capacity over the stage 2 equivalents.

Item Details:
  • Product Code: KSU24001-1R
  • Type: Race Sprung Ceramic Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1142
  • Torque(ft lb): 842.3
  • Clamp Load: 1650kg (60% inc)

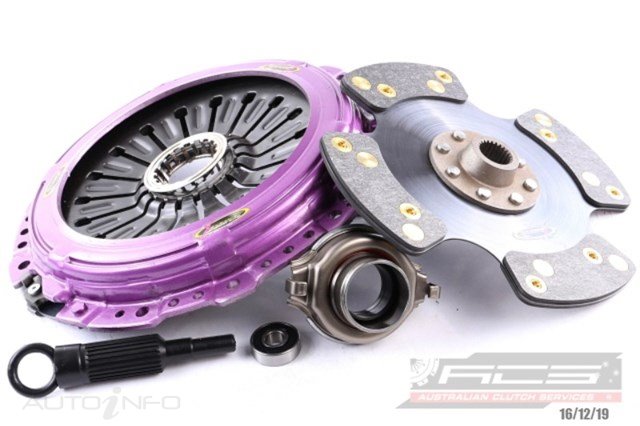

Stage 3 - Race Carbon Blade Clutch
CATEGORY
Race Carbon Blade Clutch Kit
Used by some of the most powerful time attack and drift cars in the world, the Xtreme Clutch single plate carbon clutch kits provide exceptional heat capacity for high horsepower vehicles.

Item Details:
  • Product Code: KSU24001-1P
  • Type: Race Carbon Blade Clutch Kit
  • Disc Diameter (mm): 240
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1039
  • Torque(ft lb): 766.33
  • Clamp Load: 1650kg (60% inc)

Track Use - Sprung Ceramic Twin Plate Clutch I
CATEGORY
184mm Spring Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU18521-2B
  • Type: 184mm Spring Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 184
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1210
  • Torque(ft lb): 892.45
  • Clamp Load: 900Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Push-Type Conversion)

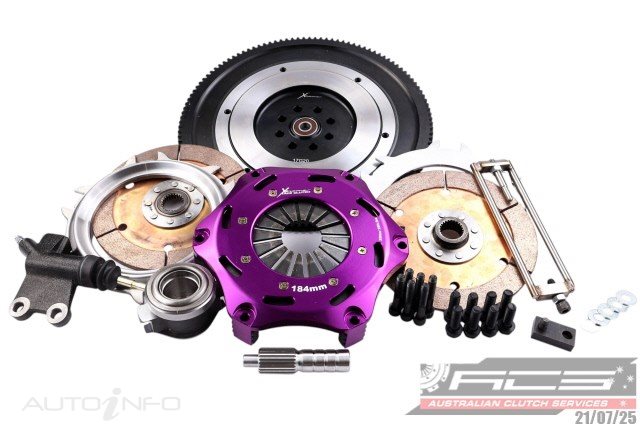

Track Use - Rigid Ceramic Twin Plate Clutch I
CATEGORY
184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU18521-2E
  • Type: 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 184
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1210
  • Torque(ft lb): 892.45
  • Clamp Load: 900Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Push-Type Conversion)

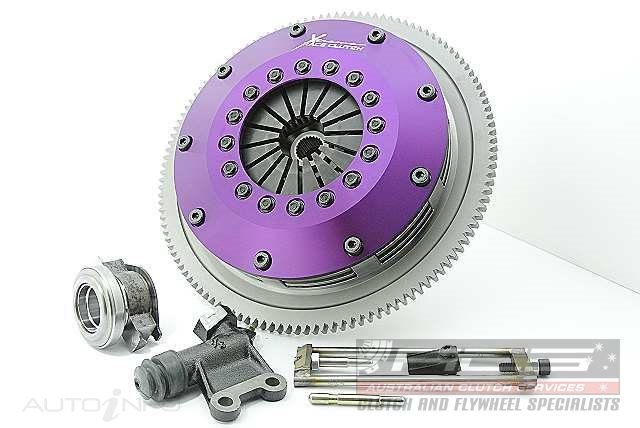

Track Use - Sprung Ceramic Twin Plate Clutch II
CATEGORY
200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU20521-2B
  • Type: 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 200
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1200
  • Torque(ft lb): 885.07
  • Clamp Load: 1100Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Push-Type Conversion)

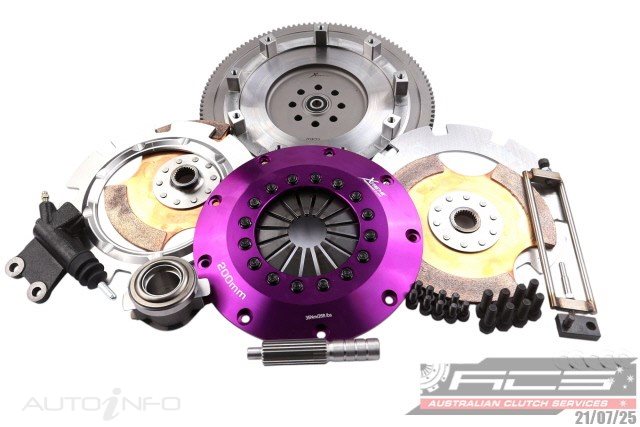

Track Use - Rigid Ceramic Twin Plate Clutch II
CATEGORY
200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU20521-2E
  • Type: 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 200
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1200
  • Torque(ft lb): 885.07
  • Clamp Load: 1100Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Push-Type Conversion)

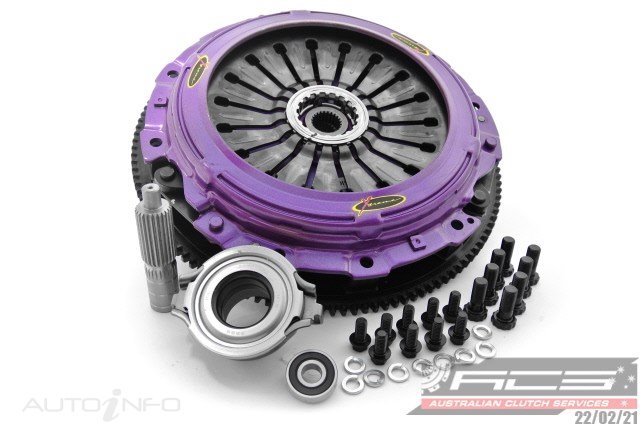

Track Use - Rigid Ceramic Twin Plate Clutch III
CATEGORY
230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU23531-2E
  • Type: 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 230
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1800
  • Torque(ft lb): 1327.61
  • Clamp Load: 1650Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Pull-Type)

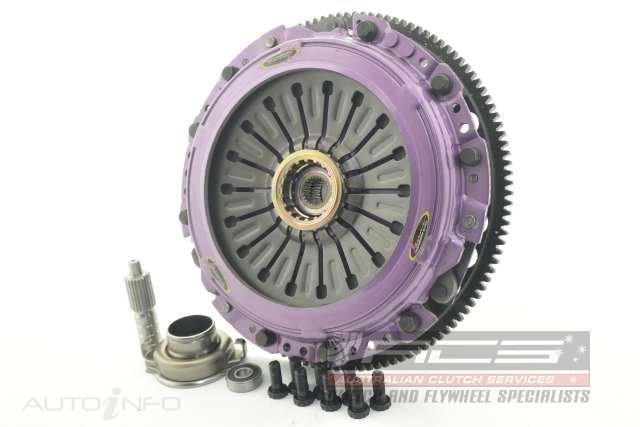

Track Use - Rigid Ceramic Twin Plate Clutch IV
CATEGORY
230mm Rigid Ceramic Twin Plate Clutch Kit Incl L/W Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU23531-2EL
  • Type: 230mm Rigid Ceramic Twin Plate Clutch Kit Incl L/W Flywheel
  • Disc Diameter (mm): 230
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 1800
  • Torque(ft lb): 1327.61
  • Clamp Load: 1650Kg

Note - Complete Kit incl. Lightweight C/moly F/W & P/P Bolts (Pull-Type)

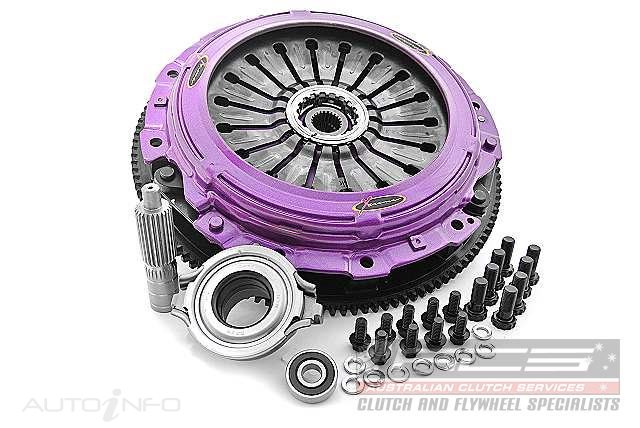

Track Use - Carbon Blade Twin Plate Clutch I
CATEGORY
230mm Carbon Blade Twin Plate Clutch Kit Incl Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU23531-2P
  • Type: 230mm Carbon Blade Twin Plate Clutch Kit Incl Flywheel
  • Disc Diameter (mm): 230
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 2000
  • Torque(ft lb): 1475.12
  • Clamp Load: 1500Kg

Note - Complete Kit incl. C/moly F/W & P/P Bolts (Pull-Type)

Track Use - Carbon Blade Twin Plate Clutch II
CATEGORY
230mm Carbon Blade Twin Plate Clutch Kit Incl L/W Flywheel
The Xtreme Carbon Multi clutch was developed for extreme horsepower cars that require incredible modulation characteristics.

Item Details:
  • Product Code: KSU23531-2PL
  • Type: 230mm Carbon Blade Twin Plate Clutch Kit Incl L/W Flywheel
  • Disc Diameter (mm): 230
  • Spline Diameter (mm): 25.2
  • Spline Count: 24
  • Torque (Nm): 2000
  • Torque(ft lb): 1475.12
  • Clamp Load: 1650Kg

Note - Complete Kit incl. Lightweight C/moly F/W & P/P Bolts (Pull-Type)

More Information
Manufacturer Xtreme Clutches
